Winnebago > Solis Motorhomes > 59PX
Share this page

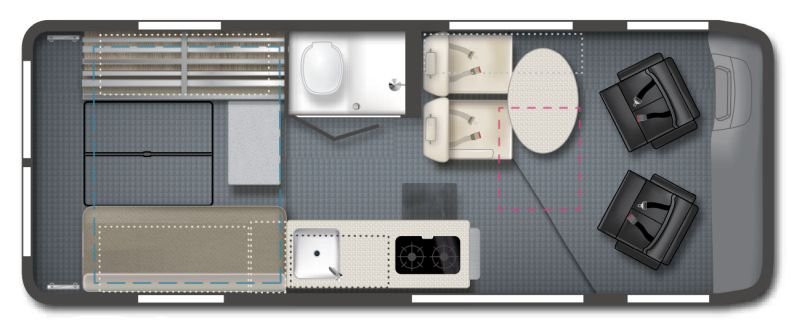

Floorplan Layout
Show / Hide
Floorplan Description
Show / HideAdditonal Specs
- Interior Height (ft in): 6'3"
- Interior Width (ft in): 6'2"
- Fuel Capacity (gal): 24
- GCWR (lbs): 12,000
- GAWR - Front (lbs): 4,629
- GAWR - Rear (lbs): 5,291
- Wheelbase (in): 159"
- Cassette Toilet Capacity (gal): 5
Chassis
- Chassis: Ram ProMaster®
- Engine: 280-hp, 3.6L V6 gas engine
- Transmission: 9-speed automatic transmission
Floorplan Options
Show / Hide| Name | Price |
|---|---|
| CSA Build (Canadian Standards) | N/A |
| Front cab air mattress 30" x 65" w/support base, cordless pump, repair kit and storage bag | N/A |
| Option to remove: Pop-top sleeping area w/FROLI sleep system | N/A |
59PX
| GVWR | 9350 lbs. |
| Shipping Weight | TBD lbs. |
| Hitch Weight | 3500 lbs. |
| Cargo Capacity | TBD lbs. |
| Exterior Length | 21' ft. |
| Exterior Width | 6'9" ft. |
| Exterior Height | 9'5" ft. |
| Fresh Water | 20 gal. |
| Grey Water | 20 gal. |
| Black Water | n/a gal. |
| Awning Size | n/a ft. |
| LPG | 25 lbs. |
| Tire Size | TBD |
| Sleeping Capacity | 4 |
| Water Heater | 2.6 |
