Winnebago > Revel Sport Motorhomes > 44N
Share this page

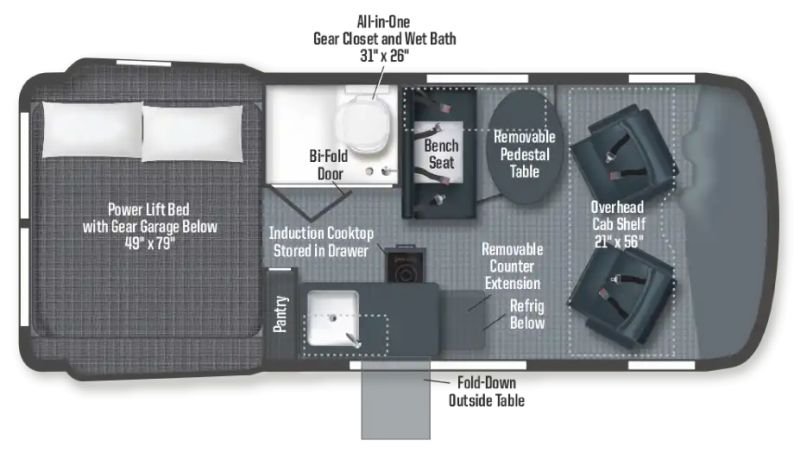

Floorplan Layout
Show / Hide
Floorplan Description
Show / HideAdditional Specs
- Interior Height (ft in): 6'3"
- Interior Width (ft in): 5'9.75"
- GCWR (lbs): 13,930
- GAWR - Front (lbs): 4,409
- GAWR - Rear (lbs): 5,359
- Wheelbase (in): 144"
- Cassette Toilet Capacity (gal): 5
- Chassis: Mercedes-Benz® AWD Sprinter
- Engine: 2.0L High-output Turbo Diesel 4 Cylinder
- Transmission: 9 Speed Automatic w/Overdrive
Floorplan Options
Show / Hide| Name | Price |
|---|---|
| Canadian Standards (CSA)(Mandatory) | N/A |
| Customized performance wheels and BF Goodrich® T/A® KO2 all-terrain tires | N/A |
| Thermal privacy curtain | N/A |
| 30" x 65" Front cab air mattress w/support base, cordless pump, repair kit, and storage bag | N/A |
| Adjustable, removable table w/storage behind lounge seat | N/A |
| 120V, 12V, USB-A, and USB-C charging ports | N/A |
| Removable countertop extension | N/A |
| Pantry | N/A |
| Stainless-steel sink w/single control faucet | N/A |
| Bi-fold bath door | N/A |
| Power lift bed and molded pockets w/zip storage below | N/A |
| Under-bed gear garage storage w/D-ring attachment points | N/A |
| Rack mounted powered patio awning w/Bluetooth® control | N/A |
| Movable ladder | N/A |
| Luggage rack | N/A |
| Aluminum running boards | N/A |
| 13,500 BTU A/C | N/A |
| Hydronic heating system w/LED touchscreen panel | N/A |
| Winnebago Power Standard | N/A |
44N
| GVWR | 9050 lbs. |
| Shipping Weight | TBD lbs. |
| Hitch Weight | 5000 lbs. |
| Cargo Capacity | TBD lbs. |
| Exterior Length | 19'7" ft. |
| Exterior Width | 7'2.3" ft. |
| Exterior Height | 6'3" ft. |
| Fresh Water | 24 gal. |
| Grey Water | 21 gal. |
| Black Water | n/a gal. |
| Awning Size | TBD ft. |
| LPG | 24.5 lbs. |
| Tire Size | TBD |
| Sleeping Capacity | 2 |
| Water Heater | Continuous |
