Tiffin > Zephyr Motorhomes > 45 PZ

Share this page

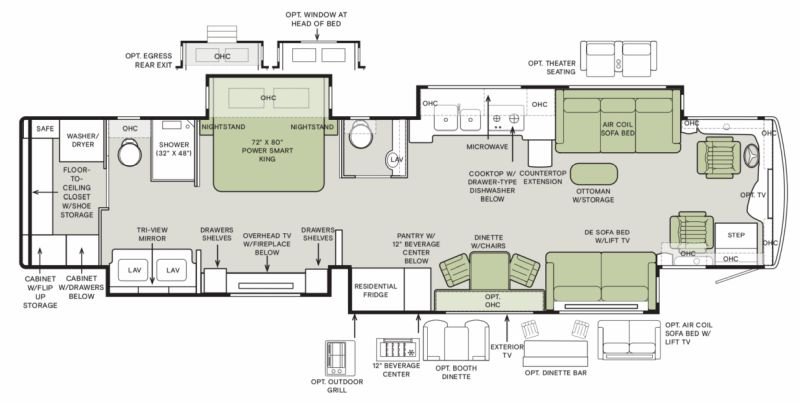

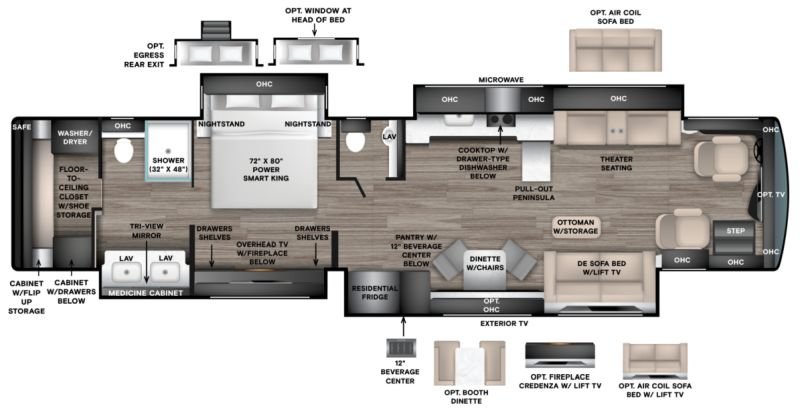

Floorplan Layout

Show / Hide

Floorplan Description

Show / Hide

Additional Specs

  • Wheel Base: 316"
  • Minimum Garage Height: 14"
  • Interior Height: 83"
  • Interior width: 96'
  • Square Footage (approx.): 440
  • Basement Storace (cu. ft. approx.): 237'
  • GAWR-Front (lbs): 22,000
  • GAWR-Tag Axle (lbs): 14,000
  • GAWR-Rear (lbs): 20,000
  • Maximum Trailer Weight (lbs): 20,000
  • GCWR (lbs): 74,000
  • Fuel Tank (gal): 150
  • DEF Tank (gal): 15

Chassis and Drivetrain

  • Chassis: PowerGlide® SL Raised Rail Rear Engine Diesel Chassis
  • Engine: Cummins® X15 605 HP Diesel Engine with 1,950 lb-ft Torque
  • Transmission: Allison® 4000 MH 6-speed Automatic Transmission with Lock-up Torque Converter



Floorplan Options

Show / Hide
Name Price
Canadian Standards (Mandatory) N/A
(3) 12-Volt, 270-Amp Hours Lithium House Batteries N/A
(3) 200-Watt Solar Panels with (1) 30-Amp Controller N/A
(6) 200-Watt Solar Panels with (2) 30-Amp Controllers N/A
(2) Powered Storage Compartment Slide-out Trays N/A
Outdoor Electric Grill N/A
Generation 12 Full Body Exterior Paint Scheme N/A
Generation 13 Full Body Exterior Paint Scheme N/A
Midnight G1 (Includes Black Aluminum Wheels) N/A
Front Overhead TV N/A
Pet Perks Premium Package N/A
Driver Side Furniture - 85" Theater Seating N/A
Driver Side Furniture - 2 Recliners w/ Table N/A
Passenger Side Dinette - 75" Dinette Bar N/A
Passenger Side Dinette - 75" U-shaped Dinette N/A
Passenger Side Furniture - 74" Air Coil Sofa Bed N/A
Kitchen - InSinkErator® Instant Hot Water Faucet N/A
Bed Slide - Window at Head of Bed N/A
Bathroom - White Linen Master Bath Cabinets N/A
Bathroom - White Linen Upper Cabinets N/A

45 PZ

GVWR 54000 lbs.
Shipping Weight TBD lbs.
Hitch Weight 20000 lbs.
Cargo Capacity TBD lbs.
Exterior Length 45' ft.
Exterior Width 8'5" ft.
Exterior Height 13'4" ft.
Fresh Water 100 gal.
Grey Water 100 gal.
Black Water 55 gal.
Awning Size TBD ft.
LPG TBD lbs.
Tire Size Front 365/70R 22.5 XZA / Rear 315/80R 22.5
Sleeping Capacity 3-5
Water Heater Aqua-Hot®

Tiffin Motorhomes is proud to be one of the few family-operated RV manufacturers in the industry, making a significant difference in how our company operates versus our competitors. With the Tiffin name on every coach, building a superior motorhome is not just our occupation but a matter of personal pride. It has been a lifelong pursuit we are committed to perfecting.
