Tiffin > Wayfarer Motorhomes > 25 XLW
Share this page

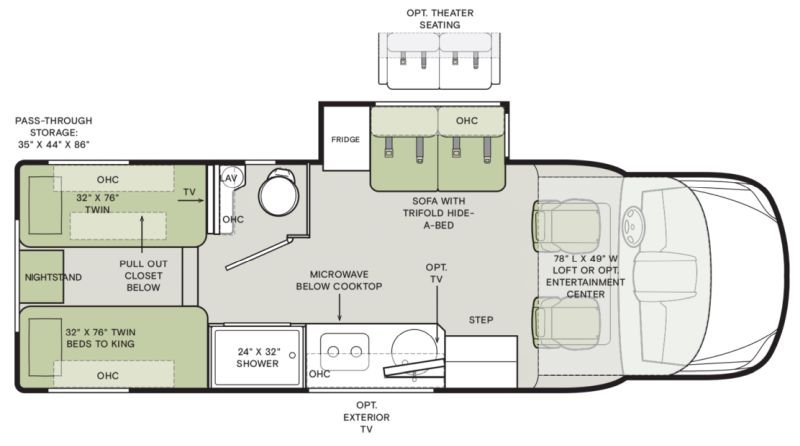

Floorplan Layout
Show / Hide
Floorplan Description
Show / HideAdditional Specs
- Wheel Base: 170.3"
- Minimum Garage Height: TBD
- Interior Height: 86"
- Interior width: 87"
- Square Footage (approx.): 146
- Basement Storage (cubic feet, approx.): 93
- GAWR-Front (pounds): 4,410
- GAWR-Rear (pounds): 7,720
- GCWR (lbs): 15,250
- Fuel Tank (gal): 24.5
- DEF Tank (gallons): 4.8
Chassis and Drivetrain
- Chassis: Mercedes-Benz® 4500XD Dual Wheel Cutaway Chassis
- Engine: Mercedes-Benz® 2.0 Liter V4 Turbo Diesel High Output 208 HP Diesel Engine with 332 lb-ft Torque
- Transmission: Mercedes-Benz® 9G-Tronic Automatic Transmission
Floorplan Options
Show / Hide| Name | Price |
|---|---|
| Canadian Standards (Mandatory) | N/A |
| Heating and Cooktop Power Source - Hydronic Heating & Electronic Appliance Equipped Coach | N/A |
| House Batteries - (2) 12-Volt Lithium House Battery | N/A |
| Electrical Add On - (1) 200-Watt Solar Panel with (1) 30-Amp Controller | N/A |
| Electrical Add On - In-Motion Satellite | N/A |
| Electrical Add On - Starlink Pro | N/A |
| Electrical Add On - Wi-Fi Booster | N/A |
| Water Heater - Truma AquaGo™ Comfort Plus Instant Water Heater | N/A |
| Water Heater - Hydronic Heating System | N/A |
| Exterior Add On - Exterior TV | N/A |
| Television - Overhead Bunk TV | N/A |
| Interior Add On - Central Vacuum System | N/A |
| Driver's Compartment Add On - Side-view Cameras | N/A |
| Driver's Compartment Add On - Cab Skylight | N/A |
| Overhead Features - Overhead Entertainment Center | N/A |
| Driver Side - 50" Theater Seating | N/A |
| Refrigerator - 12-Volt, 5.3-Cubic Foot Refrigerator | N/A |
| Refrigerator - Gas-Electric, 5-Cubic Foot Refrigerator | N/A |
| Cooking Appliances - One-Burner Induction Cooktop | N/A |
| Cooking Appliances - Liquid Propane Cooktop with Built-in Cover | N/A |
| Bedroom Add On - Mounted Bedroom TV | N/A |
25 XLW
| GVWR | 12125 lbs. |
| Shipping Weight | TBD lbs. |
| Hitch Weight | 5000 lbs. |
| Cargo Capacity | TBD lbs. |
| Exterior Length | 25'8" ft. |
| Exterior Width | 7'6" ft. |
| Exterior Height | 11'4" ft. |
| Fresh Water | 32 gal. |
| Grey Water | 30 gal. |
| Black Water | 26.4 gal. |
| Awning Size | TBD ft. |
| LPG | 12 lbs. |
| Tire Size | Front and Rear LT 215/85R 16 |
| Sleeping Capacity | 2-4 |
| Water Heater | TBD |
