Tiffin > Phaeton Motorhomes > 35 CH

Share this page

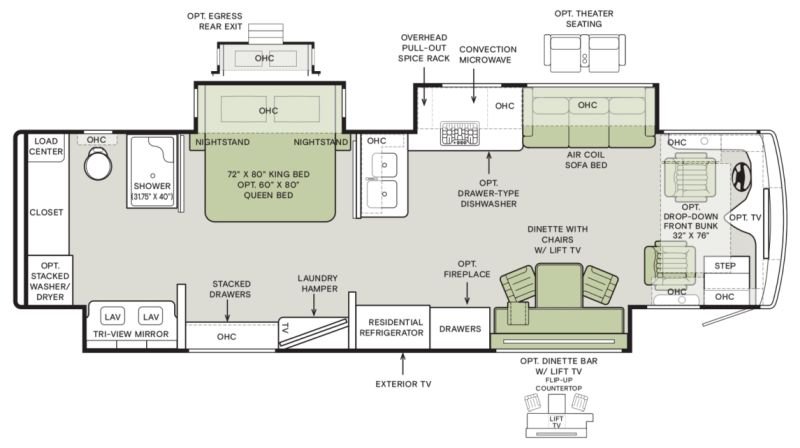

Floorplan Layout

Show / Hide

Floorplan Description

Show / Hide

Additional Specs

  • Wheel Base: 222"
  • Minimum Garage Height: 14'
  • Interior Height: 83'
  • Interior width: 96'
  • Square Footage (approx.): 375
  • Basement Storace (cu. ft. approx.): 131
  • GAWR-Front (lbs): 16,000
  • GAWR-Rear (lbs): 24,000
  • Maximum Trailer Weight (lbs): 10,000
  • GCWR (lbs): 50,000
  • Fuel Tank (gal): 100
  • DEF Tank (gal): 10

Chassis and Drivetrain

  • Chassis: PowerGlide® XC Raised Rail Rear Engine Diesel Chassis
  • Engine: Cummins® L9 450 HP Diesel Engine with 1,250 lb-ft Torque
  • Transmission: Allison® 3000 MH 6-speed Automatic Transmission with Lock-up Torque Converter

Floorplan Options

Show / Hide
Name Price
Canadian Standards (Mandatory) N/A
Heating and Cooktop Power Source - Liquid Propane (LP) Coach N/A
House Battery - (6) 6-Volt, 210-Amp Hours Extended Cycle AGM House Batteries N/A
House Battery - (3) 12-Volt, 270-Amp Hours Lithium House Batteries N/A
House Battery - Battery Slide-out Tray N/A
Solar Panel - Prep for Solar Panels N/A
Solar Panel - (3) 200-Watt Solar Panels with (1) 30-Amp Controller N/A
Electrical Add On - In-motion Satellite Dish N/A
Internet & Phone - Wi-Fi Booster N/A
Internet & Phone - Starlink® N/A
Patio Awning - (2) Girard® Roof-mntd Pwrd Patio Awn. with Integrated LED Lighting and Dual Pitch Ftr N/A
Slide Tray - (1) Manual Storage Compartment Slide-out Tray N/A
Paint Schemes - Generation 11 Exterior Paint Scheme N/A
Paint Schemes - Generation 12 Exterior Paint Scheme N/A
Paint Colors - Midnight Blue Full Body Paint (Includes Black Aluminum Wheels) N/A
Interior Add On - Standalone Living Area Fireplace N/A
Interior Add On - Stacked Washer and Dryer N/A
Interior Add On - Gold Heat® Dual Zones Heated Tile Floor N/A
Driver's Compartment Add On - Blind Spot Monitoring System N/A
Driver's Compartment Add On - In-dash Navigation System N/A
Driver's Compartment Add On - Front Overhead TV N/A
Driver's Compartment Add On - Front Overhead TV N/A
Driver's Compartment Add On - Electric Front Overhead Drop-Down Bunk N/A
Driver Side Furniture - 74" Theater Seating N/A
Passenger Side Dinette - 75" Dinette Bar with Lift TV N/A
Kitchen Add On - Drawer-style Dishwasher N/A
Mattress - Memory Foam Queen Mattress (60" x 80") with Power Smart Lift N/A
Bedroom Add On - Safe N/A
Bedroom Add On - Bedroom Egress Door N/A

35 CH

GVWR 40000 lbs.
Shipping Weight TBD lbs.
Hitch Weight 10000 lbs.
Cargo Capacity TBD lbs.
Exterior Length 37'9" ft.
Exterior Width 8'5" ft.
Exterior Height 13'3" ft.
Fresh Water 100 gal.
Grey Water 100 gal.
Black Water 55 gal.
Awning Size TBD ft.
LPG 35.7 lbs.
Tire Size Front and Rear 295/80R 22.5
Sleeping Capacity 2-4
Water Heater TBD

Tiffin Motorhomes is proud to be one of the few family-operated RV manufacturers in the industry, making a significant difference in how our company operates versus our competitors. With the Tiffin name on every coach, building a superior motorhome is not just our occupation but a matter of personal pride. It has been a lifelong pursuit we are committed to perfecting.
