Tiffin > Open Trail Motorhomes > 25 CO
Share this page

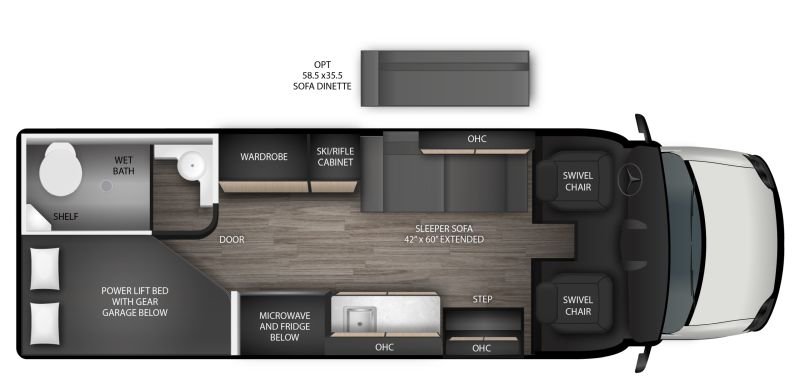

Floorplan Layout
Show / Hide
Floorplan Description
Show / HideAdditional Specs
- Wheel Base: 170.3"
- Minimum Garage Height: TBD
- Interior Height: 80"
- Interior width: 80.25"
- Square Footage (approx.): TBD
- Basement Storage (cubic feet, approx.): TBD
- GAWR-Front (pounds): 4,410
- GAWR-Rear (pounds): 7,720
- GCWR (lbs): 15,250
- Fuel Tank (gal): 24.5
- DEF Tank (gallons): 4.8
Chassis and Drivetrain
- Chassis: Mercedes-Benz® 3500XD AWD Dual Wheel Cutaway Chassis
- Engine: Mercedes-Benz® 2.0-Liter I4 Turbo 208 HP Diesel Engine with 332 lb-ft Torque
- Transmission: Mercedes-Benz® 9G Tronic Automatic Transmission
Floorplan Options
Show / Hide| Name | Price |
|---|---|
| Canadian Standards (Mandatory) | N/A |
| Mercedes-Benz® Sideview Mirror Cameras | N/A |
| Agile Offroad Premium RIP Kit Suspension Upgrade w/Bilstein Struts & 6500lb Leaf Springs | N/A |
| Generators and Power Systems - 3.2KW RVMP Diesel Generator | N/A |
| Lithium Battery - 165AH 51V Lithionics (8415WH) | N/A |
| Electrical - (2) 200-Watt Solar Panels | N/A |
| Electrical - Starlink Mini Installed | N/A |
| Heating / Hot Water - Aqua Hot 125 Hydronic + Showermiser | N/A |
| Exterior - 960W Girard Solar-Generating Awning | N/A |
| Exterior - Manual 270 Degree Batwing Awning | N/A |
| Exterior - ARB Air Compressor w/Front & Rear Chucks | N/A |
| Dinette and Living Area - Convertible Jack Knife Sofa/Bed | N/A |
25 CO
| GVWR | 11030 lbs. |
| Shipping Weight | TBD lbs. |
| Hitch Weight | 5000 lbs. |
| Cargo Capacity | TBD lbs. |
| Exterior Length | 25'6" ft. |
| Exterior Width | 7' ft. |
| Exterior Height | 11'2" ft. |
| Fresh Water | 40 gal. |
| Grey Water | 24 - 48 gal. |
| Black Water | 4.5 - 24 gal. |
| Awning Size | TBD ft. |
| LPG | 12 lbs. |
| Tire Size | Front and Rear LT 245/70R 16 |
| Sleeping Capacity | 2 |
| Water Heater | Truma Aqua Go Comfort Plus (LP) |
Tiffin Motorhomes is proud to be one of the few family-operated RV manufacturers in the industry, making a significant difference in how our company operates versus our competitors. With the Tiffin name on every coach, building a superior motorhome is not just our occupation but a matter of personal pride. It has been a lifelong pursuit we are committed to perfecting.
