Tiffin > Allegro Red Motorhomes > 38 KA

Share this page

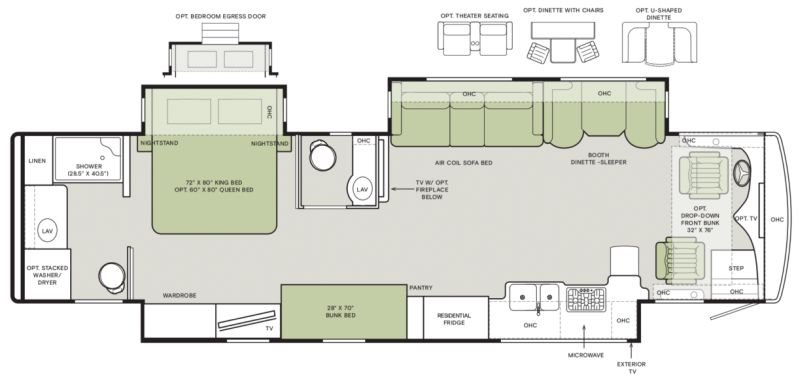

Floorplan Layout

Show / Hide

Floorplan Description

Show / Hide

Additional Specs

  • Wheel Base: 252"
  • Minimum Garage Height: 14'
  • Interior Height: 84"
  • Interior width: 96"
  • Square Footage (approx.): 390
  • Basement Storace (cu. ft. approx.): 119
  • GAWR-Front (lbs): 14,320
  • GAWR-Rear (lbs): 24,000
  • Maximum Trailer Weight (lbs): 10,000
  • GCWR (lbs): 48,320
  • Fuel Tank (gal): 100
  • DEF Tank (gal): 13

Chassis and Drivetrain

  • Chassis: Freightliner® XCR Modular Rail Rear Engine Diesel Chassis
  • Engine: Cummins® L9 380 HP Diesel Engine with 1,150 lb-ft Torque
  • Transmission: Allison® 3000 MH 6-speed Automatic Transmission with Lock-up Torque Converter

Floorplan Options

Show / Hide
Name Price
Canadian Standards (Mandatory) N/A
Wheel - American Racing Octane Wheels in Satin Black N/A
Heating and Cooktop - Hydronic Heating & Electronic Appliance Equipped Coach N/A
House Batteries - (6) 6-Volt, 210-Amp Hours Extended Cycle AGM House Batteries N/A
Air Conditioning - (2) 15,000-BTU Low Profile AC's with Heat Pumps and Condensation Drains N/A
Solar Panels - Prep for Solar Panels N/A
Solar Panels - (1) 200-Watt Solar Panel with (1) 30-Amp Controller N/A
Solar Panels - (3) 200-Watt Solar Panels with (1) 30-Amp Controller N/A
Electrical Add On - In-motion Satellite Dish N/A
Electrical Add On - Prewiring for Winegard® Trav’ler™ Satellite N/A
Electrical Add On - Wi-Fi Booster N/A
Exterior Add On - (1) Manual Storage Compartment Slide-out Tray N/A
Paint Scheme - Generation 5 Exterior Paint Scheme N/A
Paint Scheme - Generation 6 Exterior Paint Scheme N/A
Interior Add On - Standalone Living Area Fireplace N/A
Interior Add On - Stacked Washer and Dryer N/A
Interior Add On - Gold Heat® Dual Zones Heated Tile Floor N/A
nterior Add On - Central Vacuum System N/A
Driver's Compartment - In-dash Navigation System N/A
Driver's Compartment - Front Overhead TV N/A
Driver's Compartment - Electric Front Overhead Drop-Down Bunk N/A
Driver Side Dinette - 72" Dinette with Chairs N/A
Driver Side Dinette - 72" U-shaped Dinette N/A
Driver Side Furniture - 83" Theater Seating N/A
Cooking Appliances - Oven Range with Liquid Propane Cooktop N/A
Cooking Appliances - Drawer-style Dishwasher N/A
Mattress Options - Queen Mattress (60" x 80") N/A
Bedroom Add On - Bedroom Egress Door N/A

38 KA

GVWR 14320 lbs.
Shipping Weight TBD lbs.
Hitch Weight 10000 lbs.
Cargo Capacity TBD lbs.
Exterior Length 39'6" ft.
Exterior Width 8'5" ft.
Exterior Height 12'10" ft.
Fresh Water 90 gal.
Grey Water 70 gal.
Black Water 50 gal.
Awning Size TBD ft.
LPG 36 lbs.
Tire Size Front and Rear 295/80R 22.5
Sleeping Capacity 4-8
Water Heater TBD

Tiffin Motorhomes is proud to be one of the few family-operated RV manufacturers in the industry, making a significant difference in how our company operates versus our competitors. With the Tiffin name on every coach, building a superior motorhome is not just our occupation but a matter of personal pride. It has been a lifelong pursuit we are committed to perfecting.
