Tiffin > Allegro Bus Motorhomes > 40 AP

Share this page

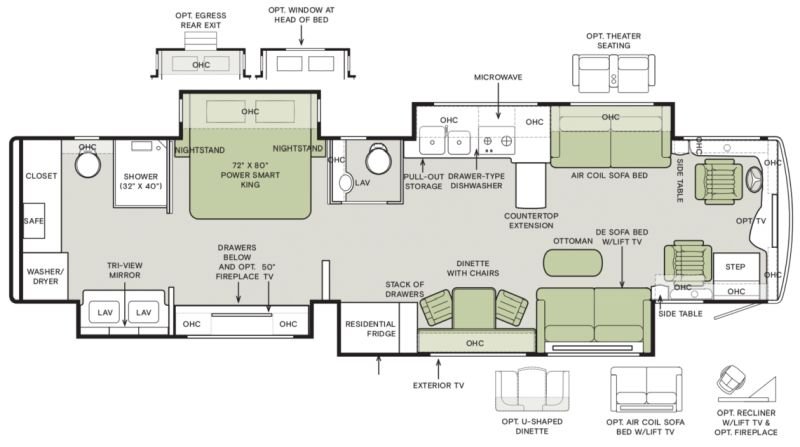

Floorplan Layout

Show / Hide

Floorplan Description

Show / Hide

Additional Specs

  • Wheel Base: 276"
  • Minimum Garage Height: 14'
  • Interior Height: 83'
  • Interior width: 96'
  • Square Footage (approx.): 405
  • Basement Storace (cu. ft. approx.): 229
  • GAWR-Front (lbs): 18,000
  • GAWR-Rear (lbs): 24,000
  • Maximum Trailer Weight (lbs): 10,000
  • GCWR (lbs): 52,000
  • Fuel Tank (gal): 150
  • DEF Tank (gal): 10

Chassis and Drivetrain

  • Chassis: PowerGlide XC Raised Rail Rear Engine Diesel Chassis
  • Engine: Cummins® L9 450 HP Diesel Engine with 1,250 lb-ft Torque
  • Transmission: Allison® 3000 MH 6-speed Automatic Transmission with Lock-up Torque Converter

Floorplan Options

Show / Hide
Name Price
Canadian Standards (Mandatory) N/A
(6) 6-Volt, 300-Amp Hours Extended Cycle AGM House Batteries N/A
(3) 12-Volt, 270-Amp Hours Lithium House Batteries N/A
(3) 200-Watt Solar Panels with (1) 30-Amp Controller N/A
(6) 200-Watt Solar Panels with (2) 30-Amp Controllers N/A
(1) Powered Storage Compartment Slide-out Tray N/A
(2) Powered Storage Compartment Slide-out Trays N/A
Generation 13 Exterior Paint Scheme N/A
Generation 15 Exterior Paint Scheme N/A
Gallery Window Package N/A
Driver's Compartment Add On - 360° View Camera N/A
Driver's Compartment Add On - Front Overhead TV N/A
Driver's Compartment Add On - Pet Perks Premium Package N/A
Driver Side Furniture - 74" Theater Seating N/A
Passenger Side Dinette - 75" U-shaped Dinette N/A
Passenger Side Furniture - 68" Air Coil Sofa Bed with Lift TV N/A
Passenger Side Furniture - Recliner and Lift TV N/A
Passenger Side Furniture - Recliner and Lift TV with Fireplace N/A
Refrigerator - Decorative Wooden Refrigerator Panel N/A
Cooking Appliances - Wolf® Induction Cooktop N/A
Kitchen Add On - InSinkErator® Instant Hot Water Faucet N/A
Bed Slide - Window at Head of Bed N/A
Bedroom Add On - Bedroom Fireplace N/A

40 AP

GVWR 42000 lbs.
Shipping Weight TBD lbs.
Hitch Weight 10000 lbs.
Cargo Capacity TBD lbs.
Exterior Length 41' ft.
Exterior Width 8'5" ft.
Exterior Height 13'3" ft.
Fresh Water 100 gal.
Grey Water 100 gal.
Black Water 55 gal.
Awning Size TBD ft.
LPG TBD lbs.
Tire Size Front and Rear 315/80R 22.5
Sleeping Capacity 2-4
Water Heater Aqua-Hot® 450D

Tiffin Motorhomes is proud to be one of the few family-operated RV manufacturers in the industry, making a significant difference in how our company operates versus our competitors. With the Tiffin name on every coach, building a superior motorhome is not just our occupation but a matter of personal pride. It has been a lifelong pursuit we are committed to perfecting.
