Jayco > Jay Flight Travel Trailers > 330TBS
Share this page

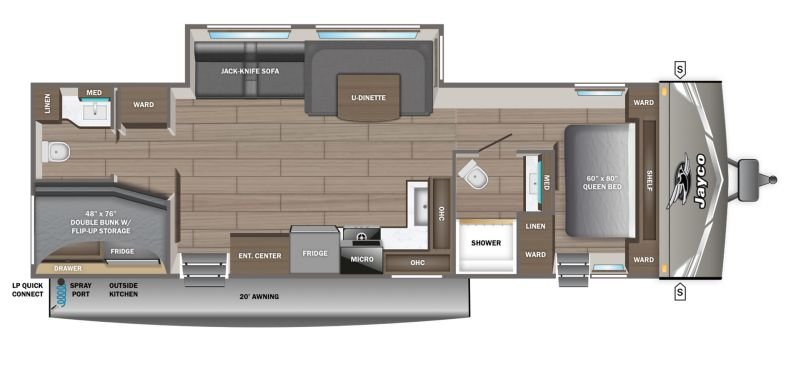

Floorplan Layout
Show / Hide
Floorplan Description
Show / HideAdditonal Specs
- Exterior Height (with A/C): 11'3"
- Exterior Width (with slides out): 11'
- Interior Height (main): 6'9"
- # of Outside Storage Compartments: 2
- Furnace BTU: 20,000
Floorplan Options
Show / Hide| Name | Price |
|---|---|
| Canadian Standards (CSA)(Mandatory) | N/A |
| Customer Value Package (Mandatory) Double Axle | N/A |
| 2nd A/C Requires 50 AMP Service Double Axle | N/A |
| Outside Griddle with LP Quick Connect Hose | N/A |
| Elite Package (Optional on Slideout Models) | N/A |
| Overlander I Solar Package Double Axle | N/A |
| 15,000 BTU Roof Mount A/C | N/A |
| 3rd A/C Double Axle | N/A |
| 50 AMP Service | N/A |
| 32 in. TV | N/A |
| Aluminum Rims Double Axles | N/A |
| Tri-Fold Sofa | N/A |
| Theater Seating | N/A |
330TBS
| GVWR | 9300 lbs. |
| Shipping Weight | 7280 lbs. |
| Hitch Weight | 880 lbs. |
| Cargo Capacity | 2020 lbs. |
| Exterior Length | 37'7" ft. |
| Exterior Width | 8' ft. |
| Exterior Height | 10'8" ft. |
| Fresh Water | 52 gal. |
| Grey Water | 78 gal. |
| Black Water | 78 gal. |
| Awning Size | 20' ft. |
| LPG | 40 lbs. |
| Tire Size | ST225/75R15'E' |
| Sleeping Capacity | 10 |
| Water Heater | Tankless |
Good times shared with family are often our most cherished memories. Like fine wine, those memories seem to improve with age. And the memories forged duringfamily vacations are especially powerful.
That’s probably why families often seek to re-create for their own children the special experiences they recall from their youth. That favorite ice cream shop. A great swimming hole or fishing stream. Nights by the campfire. And days just being a kid.
Jayco began as a family business and are still a family business today. Maybe that’s why they’re especially passionate about helping other families build their own special traditions. And time spent together in a Jayco RV is a great way to start.
