Fleetwood > Flair Motorhomes > 28A

Share this page

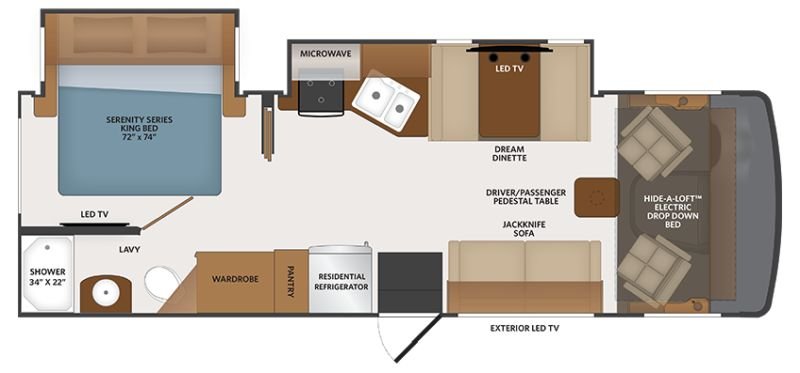

Floorplan Layout

Show / Hide

Floorplan Description

Show / Hide

Additional Specs

  • GCWR (lbs): 21,000
  • Rear Axle GAWR (lbs): 11,000
  • Front Axle GAWR (lbs): 6,500
  • Wheelbase (in): 190"
  • Interior Height (ft in): 6'10"
  • Int Width (ft in): 8'
  • Fuel Capacity (gal): 80
  • Interior Square (Feet): 254
  • Interior Storage (cu. ft.): 81
  • Exterior Storage (cu. ft.): 70
Chassis
  • Chassis: Ford®
  • Engine: Ford® 7.3L V8 335 HP
  • Transmission: TorqShift® 6-Speed Automatic w/ Overdrive and Tow/Haul Mode

Floorplan Options

Show / Hide
Name Price
CSA Package - (Canadian Standards) N/A
Steering Stabilizer System N/A
KingUniversal Satellite System N/A
Roof Vent Rain Covers N/A
Sofa - Theater Seating N/A
A/C - Dual 11,000 BTU w/4.0 Generator &EMS - LP Refer N/A
A/C - Dual 11,000 BTU w/4.0 Generator &EMS - Residential Refer N/A
LP RV-Style Refrigerator N/A
Driver Seat w/Reclining Back, Swivel and 6-way Power Controls N/A

28A

GVWR 16000 lbs.
Shipping Weight TBD lbs.
Hitch Weight 8000 lbs.
Cargo Capacity TBD lbs.
Exterior Length 29'3" ft.
Exterior Width 8'4" ft.
Exterior Height 12'4" ft.
Fresh Water 50 gal.
Grey Water 37 gal.
Black Water 37 gal.
Awning Size TBD ft.
LPG TBD lbs.
Tire Size 245/70R 19.5G (Front and Rear)
Sleeping Capacity 4
Water Heater Tankless
