2022 Reatta XL

Luxurious touches pair with ultimate maneuverability in this beautifully designed coach. New to the 2022 model are the latest in interior design trends—from the flooring, backsplashes and cabinetry to the new fabrics and exterior paint selections. It’s not all beauty: state-of-the-art technologies like Samsung® Smart TVs, JBL premium Bluetooth speakers and premium drive and handling will make every journey a joy.

Visit Reatta XL Website

What makes a superior luxury coach? To put it simply, a lot. From the quietest ride and the best handling to head-turning luxury and superior coverage, we focus on excellence in every aspect.

This year’s Entegra Coach models are as show-stopping as they are smooth-riding. A superior foundation and unrelenting attention to detail mean you’ll want for nothing in your luxury coach. Except maybe longer highways.

Visit Entegra Coach Website

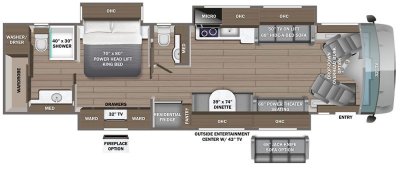

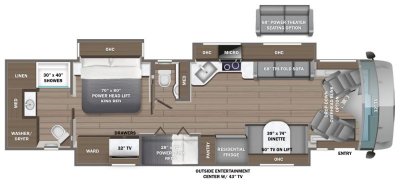

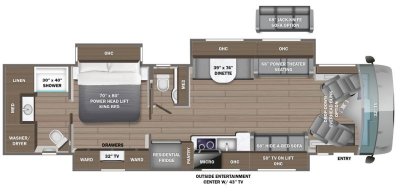

Reatta XL Floorplans

Show / Hide

Special Features

Show / Hide

2022 Product Information

Standards & Options


Chassis

  • Chassis: Spartan® K2 raised-rail chassis
  • Engine: Cummins® L9 turbocharged 380 HP engine with 1,150-lb. ft. torque at 1,400 RPM
  • Transmission: Allison® 3,000 MH 6-speed transmission
  • Radiator: Rear-mounted radiator
  • Alternator: 170-amp alternator
  • Engine Block Heater: 1,000-watt engine block heater
  • Engine Brake: Variable geometry turbo (VGT) engine brake
  • Front Axle: Front axle- 14,320 lb. rating
  • Front Suspension: Independent front air suspension (IFS)
  • Rear Axle: Rear axle - 22,000 lb. rating
  • Rear Axle Ratio: 4.88 rear axle ratio
  • Tires: Michelin® 275/80R 22.5” tires
  • Shocks: Bilstein® 46mm shocks
  • Tire Pressure Monitoring: Tire pressure monitoring system (TPMS) with temperature monitoring
  • Leveling System: Equalizer™ hydraulic automatic coach leveling
  • Air Connection: Remote air connection
  • Chassis Battery: (2) 12V chassis batteries
  • Fuel Tank: 100-gal. fuel tank
  • DEF Tank: 10-gal. DEF tank
  • Tow Air Brake System: Spartan® Safehaul tow vehicle air brake system
  • Hitch: 10,000-lb. hitch with 7-pin plug
  • Braking System: ABS disc brakes on front axle, drum brakes on drive and tag axle
Construction
  • Floor: Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurwood® and 1/4" plywood
  • Frame: X-Bridge™ bracing welded into chassis frame
  • Front Cap: Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame
  • Roof: One-piece fiberglass with 3/8" plywood decking, 4" arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
  • Slideouts: Electric-powered slideout rooms
  • Walls: Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
Heat, AC, Water & Power
  • Heated Tanks: Heated basement storage
  • Generator: Onan® 10,000-watt diesel generator, with automatic start, on slide-out tray
  • Inverter: 2,000-watt pure sine wave inverter with 100-amp battery charger
  • Batteries: (2) L16 AGM batteries (6V/390 amp hrs. ea.)
  • Electrical Hookup: 50-amp power cord on electric powered reel
  • Power Management: Automatic transfer switch with surge protection
  • Air Conditioning: (3) 15,000-BTU A/C units with heat pumps [(2) 15,000-BTU units with heat pumps on 37K]
  • Heating System: Aqua-Hot® 250D hydronic water and heating system
  • Heated Floors: Electric radiant floor heating system
  • Black Tank Management: Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door
  • Black Holding Tank Sprayer: Black holding tank sprayer
  • Water Filtration: City and tank water filtration system
  • Winterization Drain System: Winterizing drain system
Exterior
  • Patio Awnings: Carefree® power patio awning with LED lights
  • Door Awning: Carefree® power entrance door awning with LED lights
  • Slideout Awnings: Carefree® slideout awnings
  • Window Awnings: Carefree® window awnings
  • Windows: Frameless, dual-pane, tinted, safety-glass windows
  • Keypad Handle: Grab handle and keypad system for keyless entry
  • Exterior Entertainment: 43” Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL radio and speakers with USB port and receptacle
  • Mirrors: Heated, remote-control, side-view mirrors with integrated cameras
  • Exterior: Diamond Shield™ front protective film mask
  • Headlights: Halogen high and low beam headlights and fog lights
  • Daytime Running Lights: Daytime running lights
  • LED Lights: LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
  • Rear Mudflap: Mudflap with chrome “Entegra” nameplate
  • Satellite Dish - US: Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
  • Satellite Dish - CA: Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
  • TV Antenna: Winegard® Rayzar Z1 TV antenna
  • WiFI: Winegard® WiFi extender with 4G/LTE
  • Solar: Solar power prep
  • Utility Center: Exterior utility center
  • Cargo Features: Slideout basement storage tray
  • Paint: Sikkens custom full-body paint
  • Entrance Door: Removable screen on entry door
Cockpit
  • Dash: Valid 12.3" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instument cluster, 360° camera system or GPS navigation
  • Cameras: Xite™ 360° HD digital camera system
  • Infotainment System(s): Xite™ XSG4 infotainment system with 9" touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
  • Steering Wheel: Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality
  • Steering Column: Manual tilt and telescoping steering column
  • Windshield: Ultra-Vision® one-piece wrap-around tinted windshield
  • Driver / Passenger Seats: Villa® leather driver and passenger seats with powered 6-way adjustment, lumbar and footrest functions
  • Power Features: Powered flush stepwell cover
  • Pedals: Powered adjustable brake and accelerator pedals
  • Visors & Privacy Shade: Powered front sun visors and privacy shades
  • Additional Amenities: (2) dual USB ports and (2) 12V sockets for charging
Interior
  • Electric Fireplace: LED-lit fireplace with 5,000-BTU heating element (37K only)
  • Television - Front Overhead: 32" Samsung® LED 1080P Smart TV in front overhead
  • Command Center: Firefly multiplex system with 10” VegaTouch touchscreen for complete integration of coach controls (mobile app available)
  • Television - Living Room: 50” Samsung® 4K UHD Smart TV
  • Sound - Living Room: Samsung® sound bar with subwoofer
  • DVD Systems: Sony® Blu-ray™ player
  • Furniture: Premium furniture
  • Flooring: Hand-laid porcelain tiled floors
  • Lighting: LED interior lighting
  • Ceiling: Decorative ceiling feature with integrated accent lighting
  • Window Treatments: Manual solar day shades and blackout night shades
  • Central Vacuuming System: Central vacuum system
  • Washer/Dryer: Whirlpool® stacked washer and dryer
Kitchen
  • Refrigerator: Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser
  • Cooktop: Induction cooktop
  • Microwave: 1.5-cu. ft. convection microwave oven
  • Kitchen Countertops: Solid-surface countertops
  • Sink: Stainless steel sink
  • Vent: Fan-Tastic power exhaust fan with intake
  • Storage: Slide-out storage tray(s) in overhead cabinet
Bedroom
  • Bedroom Mattress / Bedding: King-size pillow-top mattress on tilt bed
  • Television: 32" Samsung® LED 1080P Smart TV
  • Sound: Sony® Blu-ray™ player

Bathroom

  • Bathroom Countertop(s): Solid-surface countertops
  • Sink: Integrated sink
  • Bathroom Shower: One-piece fiberglass shower with skylight
  • Water Saving System: Aqua View SHOWERMI$ER™ water saving system
  • Toilet: Thetford® Aqua Magic toilet with foot flush
  • Bathroom Ventilation: Fan-Tastic power exhaust fan with intake
Safety
  • Lights: Porch light
  • Carbon Monoxide Detector: Carbon monoxide detector
  • Smoke Alarm: Smoke alarm
  • Security Safe: Security safe

Interior Colours & Fabrics

Show / Hide

Click the swatches to view a larger image.

Eggshell
Onyx
Pinecone

Options

Show / Hide
Name Price Mandatory
CSA (Canadian Standards) N/A
34" Bedroom Fireplace N/A
Winegard In-Motion satellite dome N/A
Theater seating with power recliners N/A

Packages

Show / Hide
Name Price Mandatory
Customer Value Package (Mandatory) N/A
